BW 223
+
  • BW223
  • BW223
  • BW223

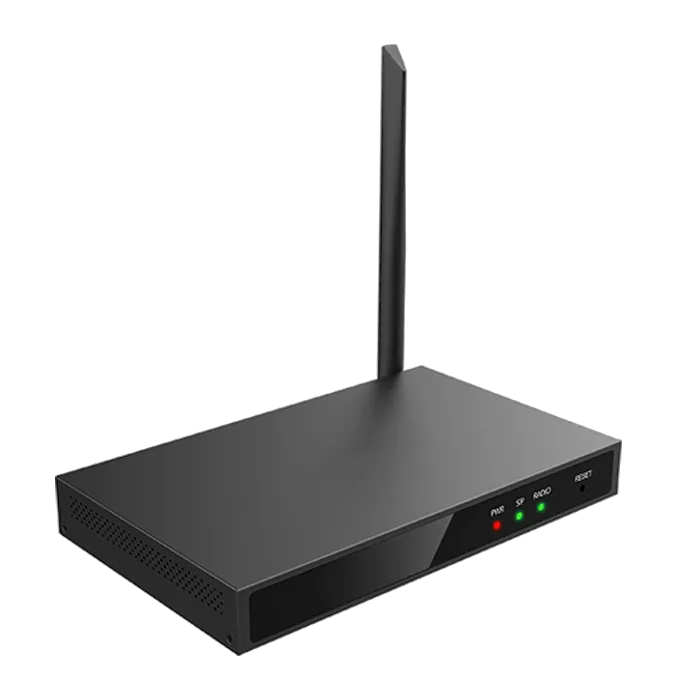

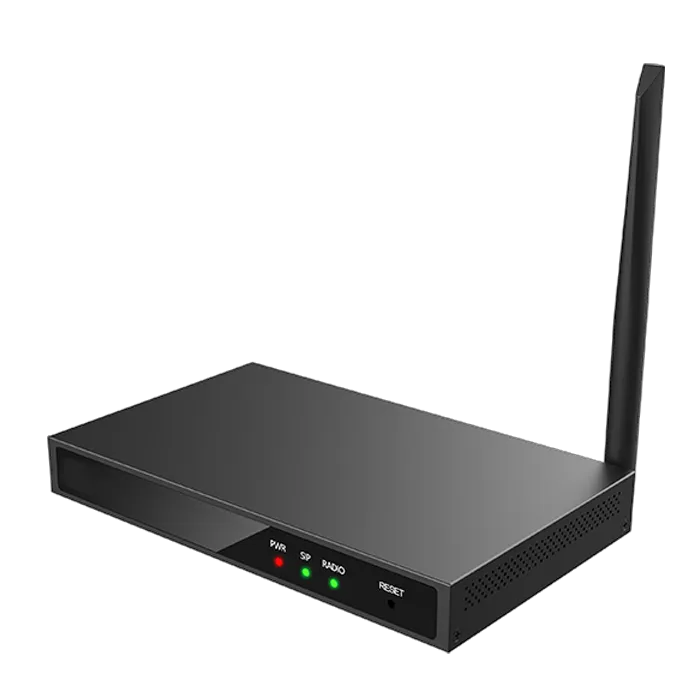

BW 223

Becke TelcomのBW 223 RoIPゲートウェイは、アナログ/DMR IIデジタル双方向ラジオとSIP通信デバイスを橋渡しするための高性能ソリューションです。UHF 400-470 MHzサポート、HDオーディオ(G.722&Opus)、およびPoE機能を備えたW 712は、セキュリティ、工業団地、およびホスピタリティのための滑らかな音声統合を保証します。この携帯用、録音サポートされたゲートウェイで統合コミュニケーションを最

Category:

  • 製品の詳細
  • スペック
  • ダウンロード
  • イントロダクション:コミュニケーションのギャップを埋める

    現代の企業環境では、従来の無線システムと現代のIP電話の切断により、重要な通信サイロが発生することがよくあります
    BW223, a specialized Radio over IP (RoIP) gateway, is engineered by Becke Telcom to eliminate these barriers. By integrating built-in radio and SIP modules, the BW223 enables instant, reliable interconnection between analog or DMR II digital two-way radios and standard SIP communication devices.This small yet powerful device allows organizations to build a comprehensive, interconnected communication system without the need to replace existing legacy radio hardware. It is the definitive choice for industries looking to accelerate their digital transformation through a wireless communication ecosystem.

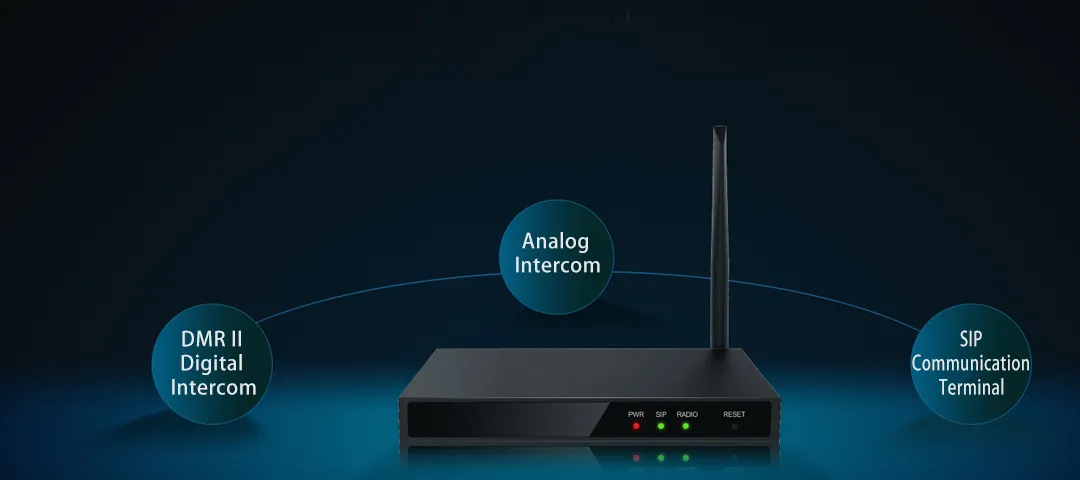

    BW223 Communication Interconnection


    コア機能のハイライト

    BW 223は、需要の高い環境向けに設計されたエンタープライズグレードの機能が満載です。

    • 二重プロトコルの統合:
      シームレスに接続
      UHF 400-470 MHz radio modules with the SIP protocol to bridge diverse communication endpoints.
    • 広い互換性:
      主要なブランドを含む主流のアナログおよびデジタルラジオとの高い相互運用性
      Motorola and Hytera.
    • HDの声の質:
      高度なワイドバンドコーデックをサポートしています。
      G.722 and Opus, ensuring crystal-clear audio with noise reduction for industrial settings.
    • 高度なデータ管理:
      ああ、特徴
      USB 2.0 interface and a TF card slot (up to 128G) for call recording storage and offline upgrades.
    • 柔軟な電力と接続性:
      サポート
      PoE (802.3at) and dual Megabit Ethernet ports for simplified cabling and stable network transmission.

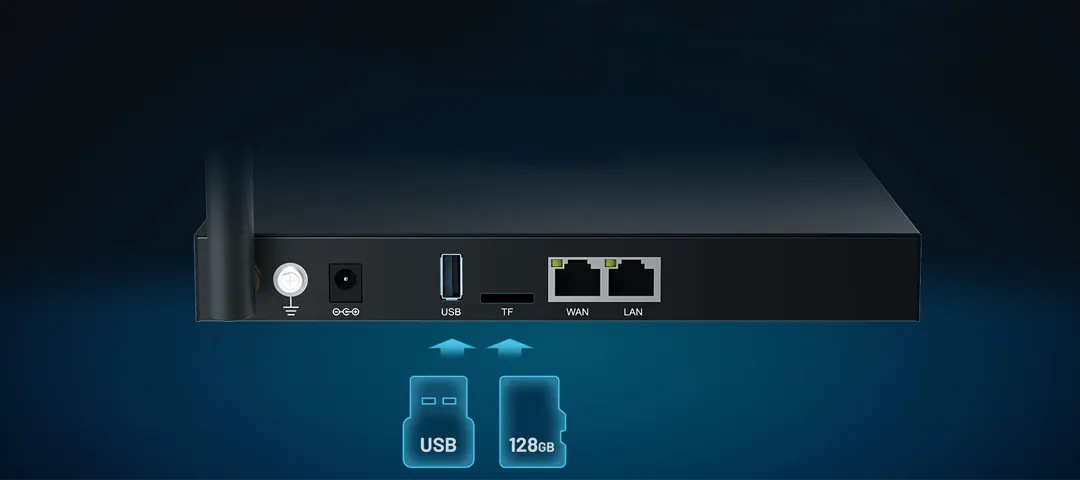

    BW223 Flexible Power Supply


    多彩なアプリケーションシナリオ

    BW 223は、即時の調整が不可欠なさまざまな運用ニーズに適応するように設計されています。

    • コミュニティとキャンパスのセキュリティ:
      直ちに対応するために、ハンドヘルドラジオのセキュリティ担当者を中央オフィスのSIP電話に直接接続してください。
    • インダストリアルパーク:
      大規模な施設全体で物流およびメンテナンスチームを調整する
      1–3 km communication range.
    • ホスピタリティ&スーパーマーケット:
      彼らが持っているデバイスに関係なく、フロアスタッフとマネジメントがつながっていることを確認してください。
    • 緊急時の対応:
      を活用する
      Push-to-Talk (PTT) nature of radios combined with the global reach of SIP for comprehensive disaster management.

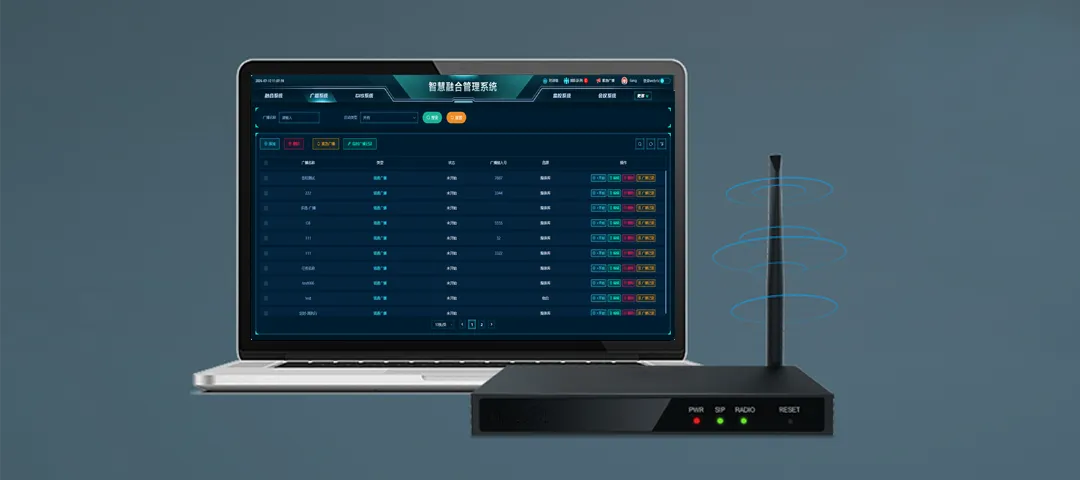

    BW223 and Converged Communication System


    一目でわかる技術仕様

    • ラジオ周波数:
      UHF 400-470 MHz(アナログおよびDMR IIデジタル)。
    • SIPライン:
      サポート
      2 SIP lines with SIP hotspot capabilities.
    • オーディオコーデック:
      G.711 A/U、G.729 A/B、i LBC、G.723.1、G.722、およびOpus。
    • インストール:
      コンパクトなフォームファクター($209\times 126\times 26.3\text{mm}$)をサポート
      desktop or wall-mounted deployment.
    • セキュリティとVPN:
      高度なネットワーク保護
      OpenVPN, L2TP, and HTTPS.

    結論:動きの効率性

    ザ・
    BW223 is more than just a gateway; it is a commitment to uninterrupted productivity. By combining traditional radio reliability with modern IP flexibility, it ensures that your team remains connected whenever and wherever it matters most.

  •    ジェネリック


    •        アナログ/DMR IIデジタルラジオの1つの接続、SIPコールの1つの接続をサポートします。
    •        通話録音をサポートする
    •        2つのSIPライン
    •        SIPホットスポットをサポート
    •        伝統的なアナログ/デジタルインターホンとSIP製品(周波数帯: 400〜470 MHz)をサポートします。

       オーディオ


    •        SIP標準プロトコルをサポート
    •        HDオーディオをサポートし、音声活動の検出/ノイズリダクションを行う
    •        ナローバンドコーデック: G.711 A/U、G.729 A/B、i LBC、G.723.1、G.72 6-3 2 K
    •        ワイドバンドコーデック: G.722、Opus

       ラジオの仕様


    •        無線周波数: UHF 400~470のMHz
    •        コミュニケーション距離:都市部のオープンエリアで1〜3 km(実際の環境による)

       デバイスの機能


    •        オートアンサー
    •        スピードダイヤル
    •        ネットワーク時刻同期
    •        動的マルチキャスト機能
    •        ブロックされた通話リスト
    •        通話ログ(SIP電話/ラジオ用600個)
    •        アクションURL/アクティブURI

       ネットワーク


    •        デュアル10/100 Mbpsイーサネット
    •        IPモード: IPv 4/IPv 6/IPv 4&IPv 6
    •        IPの設定:静的なIP/DHCP/PPPoE
    •        VPNの: L2 TP/Open VPN
    •        VLAN

       プロトコル

    •        UDP/TCP/TLS上のSIP v 1(RFC 254 3)およびv 2(RFC 32 6 1)
    •        RTP/RTCP/SRTPの
    •        STUN
    •        DHCP
    •        IPv 6
    •        PPPoE
    •        L2 TP
    •        Open VPN
    •        SNTP
    •        FTP/TFTPの
    •        HTTP/HTTPSの
    •        TR-0 6 9

       デプロイとメンテナンス


    •        FTP/TFTP/HTTP/HTTPS/DHCP OPT 66/SIP PNP/TR-0 69による自動プロビジョニング
    •        ウェブ管理ポータル
    •        ウェブベースのパケットダンプ
    •        設定のエクスポート/インポート
    •        ファームウェアのアップグレード
    •        Syslog

       物理的な仕様


    •        色:ブラック
    •        物理キー: 1リセットキー
    •        インジケーターライトx 3:(電源の状態、SIP通話、無線通話)
    •        DCインターフェースx 1: DC 12 V/2 A
    •        RJ 45インターフェイスx 2: WANとLANを接続する
    •        PoE対応:クラス4、8 0 2.3 at、WANインターフェース経由
    •        TFインターフェースx 1: TFカードの接続(最大128 G)
    •        USB 2.0インターフェイスx 1: USBカードの接続、記録ストレージ、ソフトウェアのアップグレードのための標準A。
    •        働く温度:-10℃~50℃
    •        ストレージ温度:-20℃~60℃
    •        働く湿気: 10%~95%
    •        インストール:デスクトップスタンド/壁掛け
    •        N. W/CTN:8.8キログラム
    •        G. W/CTN:9.5キログラム
    •        装置の寸法は209 x 126 x 26.3 mmです。
    •        ギフトボックスの寸法: 225 x 202 x 99 mm
    •        外CTN次元: 42 4 x 320 x 245 mm(10のPCS)
